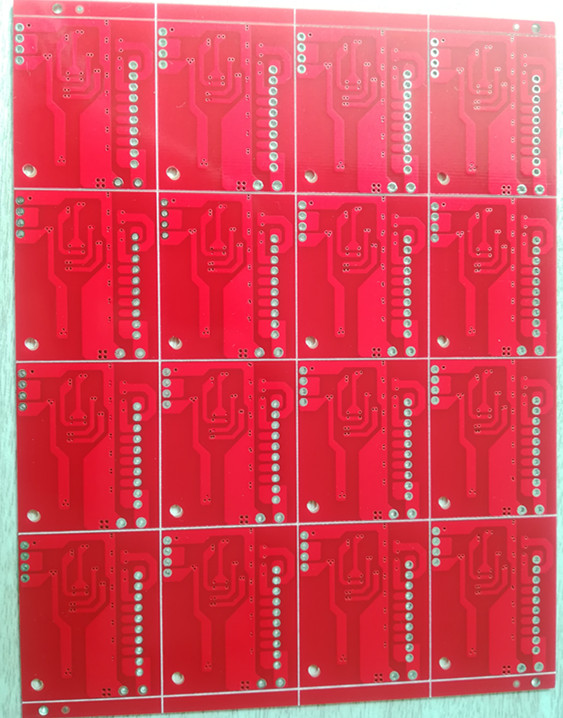

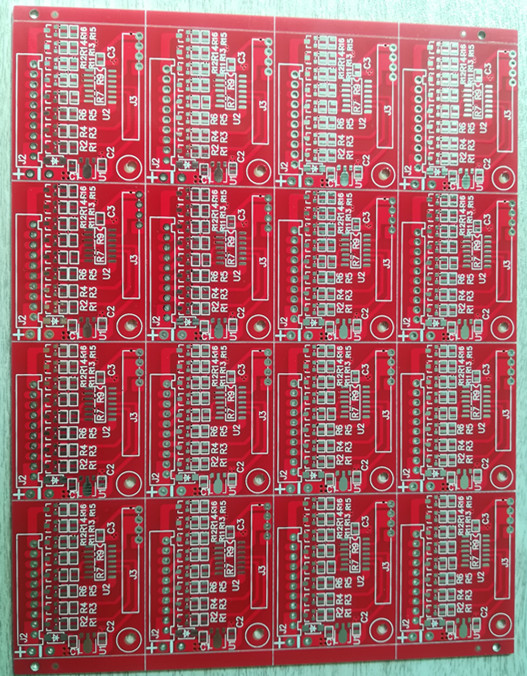

Double sided pcb board with Red Solder mask
| Manufacturing Capabilities | |
| Features | Capabilities |
| Layers | 1 to 24 layers |
| Base Materials | FR4, High TG FR4,CEM-3,CEM-1,Aluminum Base, Rogers,Halogen Free |
| Base Copper Thickness | 0.5 oz to 5 oz |
| Finished Copper Thickness | 1 oz to 5 oz |
| Board Thickness | 0.2mm to 6.0mm |
| Maximum Panel Size | 520mm x 1200mm |
| Finished Hole Size | 0.1mm to 6.3mm |
| Hole Size Tolerance | NPTH: ±0.05mm; PTH: ±0.076mm |
| Aspect Ratio | 8:01 |
| Blind or Buried Via | Yes |
| Minimum Trace Width / Spacing | 0.002" / 0.002" |
| Impendance Control Tolerance | ±5% |
| Solder mask Type | LPI |
| Solder mask / Silk screen Color | Green, Black, White, Blue, Yellow, Red, etc… |
| Surface Finish Type | HASL, HASL + Lead Free, Immersion Gold, Flash Gold, Immersion Tin, |
| Immersion Silver, OSP, | |
| Carbon Ink | Yes |
| Peelable Mask | Yes |
